Cut-Outs

Our cut-outs are designed and manufactured using flame-retardant self-extinguishing ABS. We offer a wide range of features and configurations – learn more about the features, benefits, and technical specifications.

tofco-cut-outs-f144dp-1
tofco-cut-outs-f144dp-2
tofco-cut-outs-f144dp-3
tofco-cut-outs-type-1-gcc-1
tofco-cut-outs-type-1-gcc-2
tofco-cut-outs-type-3-gcc-2 (1)
tofco-cut-outs-type-3-gcc-2

Product Overview

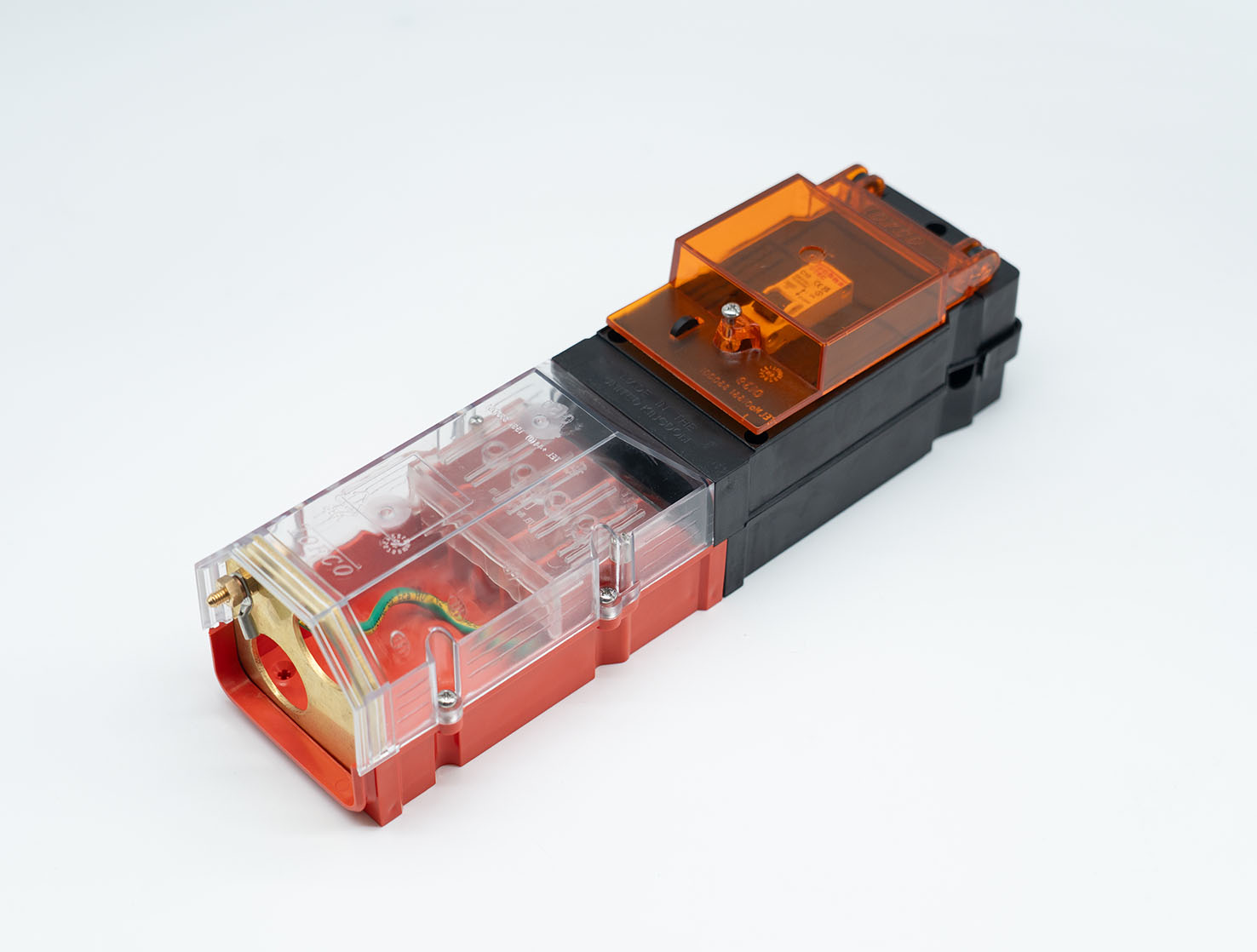

One of the UK’s leading manufacturers and suppliers of Highway Lighting Cut Out Units, moulded from the flame retardant self extinguishing ABS.

Features and Benefits

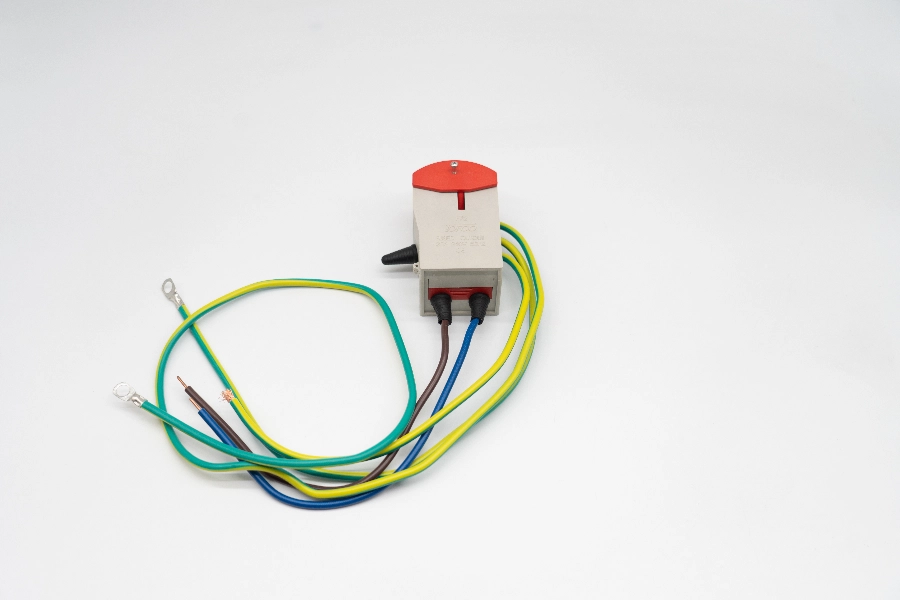

F072 Fuse Unit

  • Moulded from flame retardant self-extinguishing ABS, designed to accept BS88 offset-tag fuse links up to 32A (fixing centres 38.5mm x 9.5mm).
  • Cam-lever operation on fuse cover for ease of access, with supply cables fully shrouded even after fuse cover removal.
  • Double pole, single fuse unit with 4-way internal earth block and lead/lag operation on fuse/neutral legs.
  • Captive lid fixing screw seated into a brass insert, with captive wood screws supplied for backboard fixing.

F144 Fuse Unit

  • Designed to accept BS88 offset-tag fuse links up to 32A (fixing centres 38.5mm x 9.5mm), fitted with live, neutral, and earth, and 2-way incoming supply terminal blocks for up to 25mm² circular conductors (3-way blocks available on request).
  • 45mm from terminal block to plastic cable entry plate with grommets, with other configurations available upon request.
  • BS88 Offset Tag Fuse links (2A to 32A) and 230/240V Street Lighting Cut-Out Fuse-Links to BS88: Part 1, IEC60269-1 available, rated voltage 240V a.c., breaking range utilization category gG, rated breaking capacity 20kA at 240V a.c.

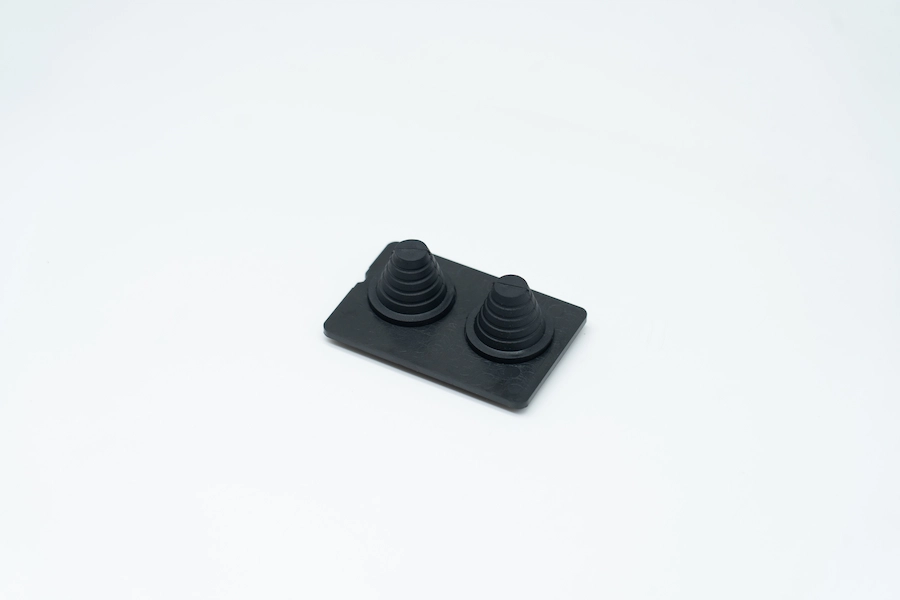

  • ABS plate with graduated cone grommets fitted as standard. Brass ferrules with cable clamps or cable glands can be supplied/fitted to any of the above plates, with external brass plates also available. Additional options available upon request.

Technical Specifications

DOWNLOADS

F072 Fuse Unit Datasheet

F144 Fuse Unit Datasheet

F144-SPD Fuse Unit Datasheet

GCC Export Catalogue

Type 1 - GCC Datasheet

Type 2 - GCC Datasheet

Type 2 - GCC Dimensions

Type 3 - GCC Datasheet

Type 3 - GCC Dimensions

Type 4 - GCC Datasheet

Type 4 - GCC Dimensions

Type 5 - GCC Datasheet

Type 5 - GCC Dimensions

Type 6 - GCC Datasheet

Type 6 - GCC Dimensions

Type 7 - GCC Datasheet

Type 7 - GCC Dimensions

Type 10 - GCC Datasheet

Type 10 - GCC Dimensions

Type 11 - GCC Datasheet

Type 11 - GCC Dimensions

Type 12 - GCC Datasheet

Type 12 - GCC Dimensions

Type 13 - GCC Datasheet

Type 13 - GCC Dimensions
